Network Segmentation

Network segmentation is highly recommended for Process Control Networks and other mission-critical environments. It involves dividing the control network The portion of the control system network where process data is transferred, including Supervisory Control and Data Acquisition (SCADA) to Programmable Automation Controller (PAC) traffic and PAC to PAC traffic into logical segments and establishing security zones to limit the spread of threats. Network segments can be established using devices, for example, managed Ethernet, which provide virtual local area network (VLAN An implementation in some managed Ethernet switches to group ports and nodes based on IEEE 802.1Q tags. This allows isolating network traffic and reduces Ethernet collision domains, resulting in better performance and deterministic system behavior) and access control list management capabilities, firewalls and routers.

As a first level of defense, managed Ethernet switches can be configured to help protect every port from unauthorized access. Port access can be defined for specific Media Access Control (MAC) or Internet Protocol (IP) addresses.

Additionally, the rate limiter feature on switches can help reduce the likelihood of denial of service (DoS) and other flood attacks. The rate limiter allows you to specify the maximum amount of traffic allowed in or out of each port.

VLAN functionality can be used to further restrict traffic by segmenting the physical network into multiple logical networks.

Segmentation facilitates the establishment of security zones; a security zone can consist of one or more network segments. Traffic into and out of a zone is subject to a zone-specific set of rules, enforced, monitored and supported using devices, for example, industrial firewalls. The organization of zones can be influenced by many factors including function, location and security requirements, for example, a zone may consist of network segments and devices located near each other that serve a related functional task, whilst another network zone could contain devices that share a common set of security requirements.

Network segmentation and the establishment of security zones can help to:

• Contain malware infections to one network segment.

• Improve security by limiting node visibility.

• Stop intruder scans at the network level before they reach a potential target system.

• Limit the impact of a security breach on a network.

• Restrict broadcasts Messages that are sent out to all devices on the network and multi-casts to particular VLAN.

• Improve network performance and reduce network congestion.

• Control communication access between segments providing critical devices or systems get a higher level of security.

Virtual Local Area Networks (VLAN)

One common method of network segmentation is the use of virtual local area networks (VLANs). VLANs divide a physical network into smaller logical networks to increase performance, improve manageability, simplify network design and provide another layer of security. For example, separate VLANs could be established for each of the three device network security zones.

VLAN is an Open Systems Interconnection (OSI) Layer 2 broadcast domain A collection of devices that receive broadcasts sent on an Ethernet network. The broadcast domain ends at a router positioned in the network. If any device in a broadcast domain broadcasts information, the information is received by all devices in the same domain. It is not received by devices connected through a router configured on managed switches on a port-by-port basis. Traffic on each VLAN segment is isolated from other VLANs, where the switch does not filter traffic between two devices on the same VLAN. VLANs can limit the impact of a security breach if a system in one becomes compromised.

VLAN Guidelines

VLAN grouping strategies vary greatly, but common strategies include grouping by:

• Functional or cell/area zone - Each VLAN carries only the traffic necessary for the operation of a particular cell/area zone.

• Access requirements - VLANs are grouped according to the access requirements of different types of users, for example, operators, engineers or vendors.

• Security - VLANs are grouped to support the control of access to sensitive information, devices and processes.

• Traffic - VLANs are grouped to balance traffic loads in support of the required throughput.

Segmentation guidelines include:

• Use one VLAN per ring topology for all manufacturing traffic per cell or area zone.

• Use dedicated VLAN for device management, for example, switch or server.

• Contain Voice over Internet Protocol (VoIP) on to a dedicated VLAN.

• Assign a restricted VLAN identifier (ID) to packets entering the demilitarized zone (DMZ) from the enterprise network so those packets can access only specific devices in the DMZ.

• Remove all unnecessary traffic from each VLAN.

• Apply quality of service (QoS) access control lists (ACL) to rate-limit the amount of ping traffic allowed.

• Avoid protocols that send passwords in clear text, for example, telnet and file transfer protocol (FTP). Use secure shell (SSH) and secure file transfer protocol (SFTP) sessions if the device supports those protocols. If Telnet or FTP is needed, use ACLs or firewall rules to allow connections only between specific hosts A node on a network, for example, a computer, that can be logged into and used interactively.

• Disable unused ports or put them into an unused or untrusted VLAN that has very restricted access.

• Avoid the use of VLAN 0 transparent mode, as the packets are sent without VLAN membership.

Communication Between VLANs

Once a network is segmented into VLANs, users need restricted communications between the VLANs. This can be achieved by using a Layer 3 switch that combines the functionality of a router and a switch which can map traffic from one VLAN to another.

Firewalls

Firewalls help protect networks by permitting authorized access and blocking unauthorized access. A firewall is a device or set of devices configured to permit, deny, drop, encrypt, decrypt or proxy traffic between different security zones based upon a set of rules and other criteria. Additionally, firewalls can support event logging to a syslog server or to an internal event log in the firewall. Event logging is used to monitor security events and alarms that occur on an industrial network and can be used to identify network threats.

Typical events that can be monitored are:

• Firewall interface up or down.

• Attempted log-in to firewall.

• Packets matching firewall rule allowed or denied.

• Denied packets that do not match a rule.

• Power failure or power recovery.

It is recommended to systematically store and then review event logs.

Process control devices require fast data throughput and often cannot tolerate the latency The delay incurred by an Ethernet switching or bridging device between receiving and forwarding the frame introduced by an aggressive security strategy inside a control network. Firewalls play a role in a security strategy by providing levels of protection at the perimeters, or even within the network. A control system relies heavily on perimeter protection and network segmentation to block unwanted and unauthorized traffic.

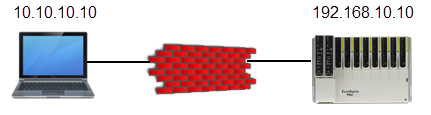

Common firewall types include the following:

Select from the options below to display the details required:

National Institute of Standards and Technology (NIST) Firewall Guidelines

The National Institute of Standards and Technology (NIST) published the following guidance in SP800-82 (Guide to Operational Technology (OT) Security):

• By default, "deny all, permit none." (When defining explicit or implicit deny rules, Watlow Electric Manufacturing Company recommends implementing a drop action rather than a reject action. This prevents system interrogation from external sources.)

• Ports and services between the control system network environment and the corporate network should be enabled and permissions granted on a specific case-by-case basis. There should be a documented business justification with risk analysis and a responsible person for each permitted incoming or outgoing data flow.

• All "permit" rules should be both IP address and TCP or UDP port specific.

• All rules should restrict traffic to a specific IP address or range of addresses.

• Traffic should be prevented from transiting directly from the control network The portion of the control system network where process data is transferred, including Supervisory Control and Data Acquisition (SCADA) to Programmable Automation Controller (PAC) traffic and PAC to PAC traffic to the corporate network. All traffic should terminate in a DMZ.

• Any protocol allowed between the control network and the DMZ should explicitly NOT be allowed between the DMZ and corporate networks (and vice-versa).

• All outbound traffic from the control network to the operations network should be source and destination-restricted by service and port.

• Outbound packets from the control network or DMZ should be allowed only if those packets have a correct source IP address that is assigned to the control network or DMZ devices.

• Control network devices should not be allowed to access the internet.

• Control networks should not be directly connected to the internet, even if protected via a firewall.

Other Firewall Risk Mitigation Guidelines

Select from the options below to display the details required:
