Edit a Server Data Source

For instruments on a server, that were added as one server card only. If the instruments on a server were added as separate cards go to Edit an Instrument Data Source.

At any time, a server data source configuration can be reconfigured.

1. Go to Data Sources.
2. On a Server Data Source card click on .
3. Edit the configuration as required.
4. Click on Connect.

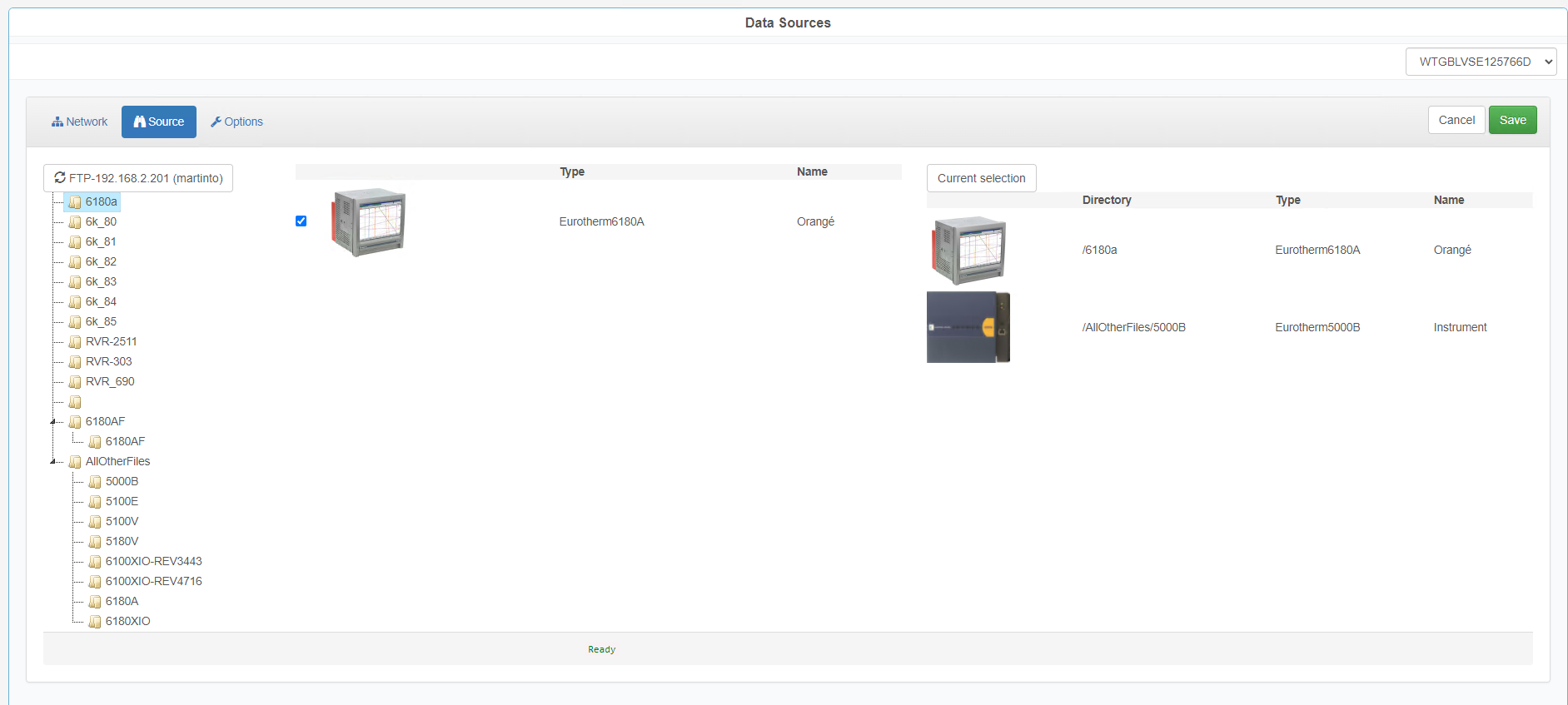

5. In Source, click in the tick box for each instrument to add or remove instruments as data sources.

6. Click on Option.
7. Click on the Automatic Import slider to select from:
   1. On: Automatic import from the instrument. Set the Pull interval (minimum is one minute).
   2. Off: Import data files manually.
8. Click on Save.

You have now changed the configuration of the selected instrument.
