BMS - Blanking Module Single Width Technical Data Sheet

A blanking module designed to maintain the integrity of the I/O system. A blanking module must be installed in any unused slot to provide protection from physical damage, dirt and other environmental factors.

Main BMS Characteristics
Net weight	0.041 kg (1.45 oz)
Hot Swap	Yes
Housing color	Grey

Environment
IP degree of protection	IP20
Product certification	CE CULus RCM
Standards	EN/IEC 61326-1 EN 61010-2-201 UL 61010-2-201
Directives	2014/30/EU - Electromagnetic compatibility 2014/35/EU - Low voltage 2011/65/EU, 2015/863/EU RoHS
Operating temperature	0 to 55 °C (32 to 131 °F)
Storage temperature	-5 to 60 °C (23 to 140 °F)
Relative humidity	5 % to 95 % without condensation
Operating altitude	0 to 2000 m (0 to 6561 ft)
Pollution degree	2
Vibration	2 g
Shock	15 g for 11 ms

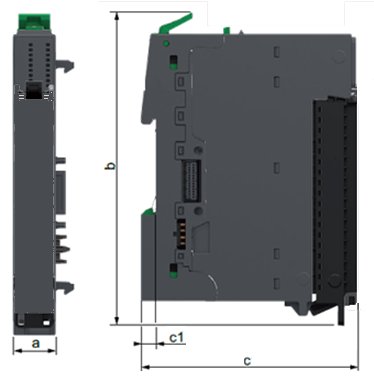

Dimensions

Dimension Size a 15 mm (0.59") b 116.6 mm (4.57") c 107.5 mm (4.21") c1 88.2 mm (3.46") c2 5.6 mm (0.20")

Last update - April 2026
