AI3 - 3 Channel Isolated Universal Analog Input Module Quick Links

Tip - To display this information in a different language, please select Language

and select the language required.

The AI3, a three channel ..........

Select from the following for more details as required:

Additional Information

Note - Shielded cable not required if the cable connected to the I/O terminals is under 30 m (98' 5") in length.

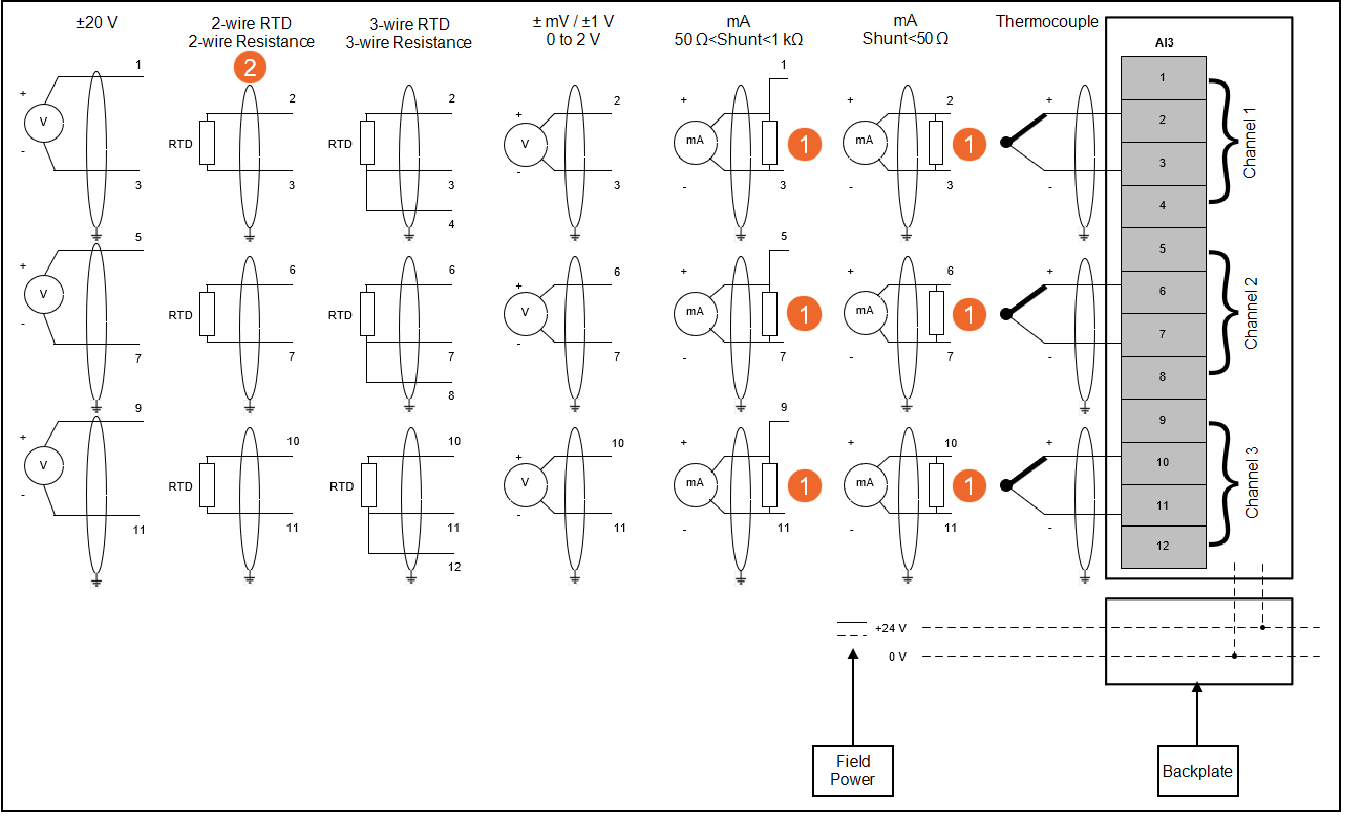

Key

Description

1 - Shunt Resistor

This is required for mA inputs. The parameter configuration defaults to 49.9 Ω to match the value of the EPM Shunt Assembly (available separately), if a different resistor is used, its value must be entered in the parameter configuration. Shunt resistors below 50 Ω use the ±1 V range and resistors above 50 Ω use the ±20 V range. For the best results, use a resistor with a value closest to 50 Ω for the most demanding applications. Ensure the terminals used match the value of resistor selected.

2 - Contact Closure
