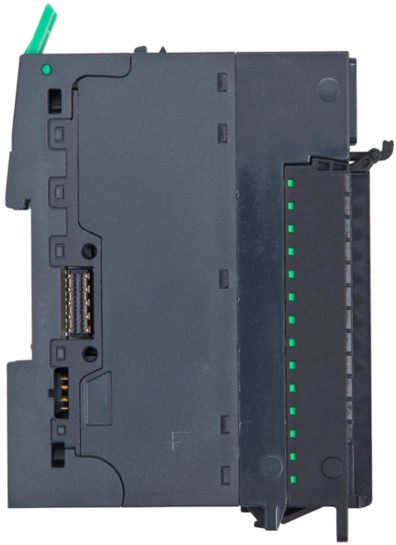

DI4 - 4 Channel Digital Input Module Quick Links

Tip - To display this information in a different language, please select Language

and select the language required.

The.....

Select from the following for more details as required:

Additional Information

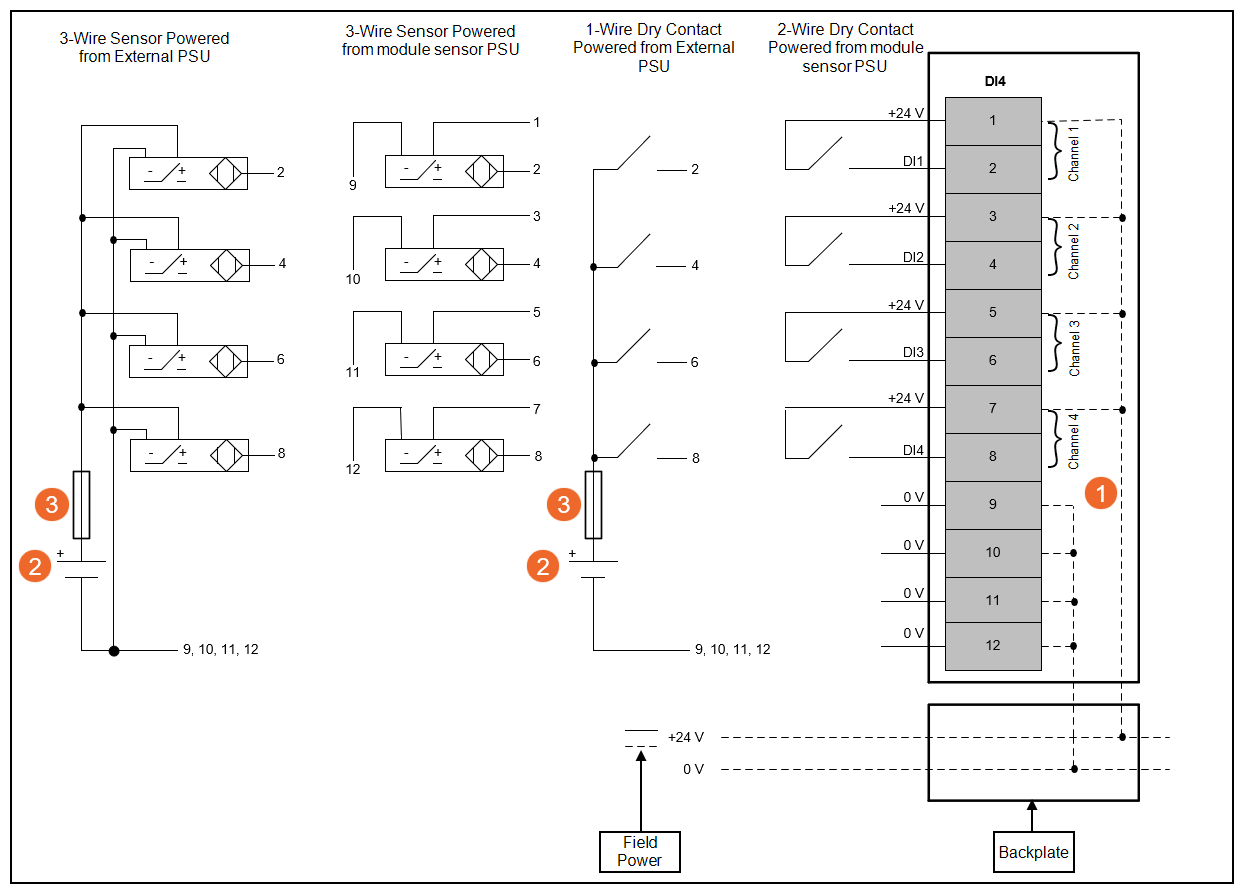

Key	Description
1	The sensor power outputs, pins 1, 3, 5 and 7, are protected within the module by a common self-resetting eFuse (nominally 500 mA). The module has two power supply diagnostics flags, one for the field power incoming from the backplate, and one for the outgoing power to the sensor.
2	SELV 24 V PSU
3	External fast blow fuse appropriate for load, or protection to an equivalent level
