Applications
An Application channel applies predefined application logic to one or more input values. Input values can come from hardwired inputs, comms inputs, the outputs of other channels, or be manually entered. Each Application channel uses a specific application type such as Calibration Due, F-Value or Group MKT that defines how the channel processes its inputs.
Within EPM Data Management up to 128 application channels can be configured.
The following application types are available:
-
Calibration Due, see Configuring a Calibration Due Application Channel for details.
-
Channel MKT, see Configuring a Channel MKT (Mean Kinetic Temperature) Application Channel for details.
-
F-Value, see Configuring an F-Value Application Channel for details.
-
Group MKT, see Configuring a Group MKT Application Channel for details.
-
Linear Mass Flow, see Configuring a Linear Mass Flow Application Channel for details.
-
O2 Correction, see Configuring an O2 Correction Application Channel for details.
-
Root Mass Flow, see Configuring a Root Mass Flow Application Channel for details.
-
SAT Due, see for Configuring a SAT Due Application Channel details.
-
Thermocouple Cal Correction, see Configuring a Thermocouple Cal Correction Application Channel for details.
-
Thermocouple Life, see Configuring a Thermocouple Life Application Channel for details.
-
TUS Due, see Configuring a TUS Due Application Channel for details.

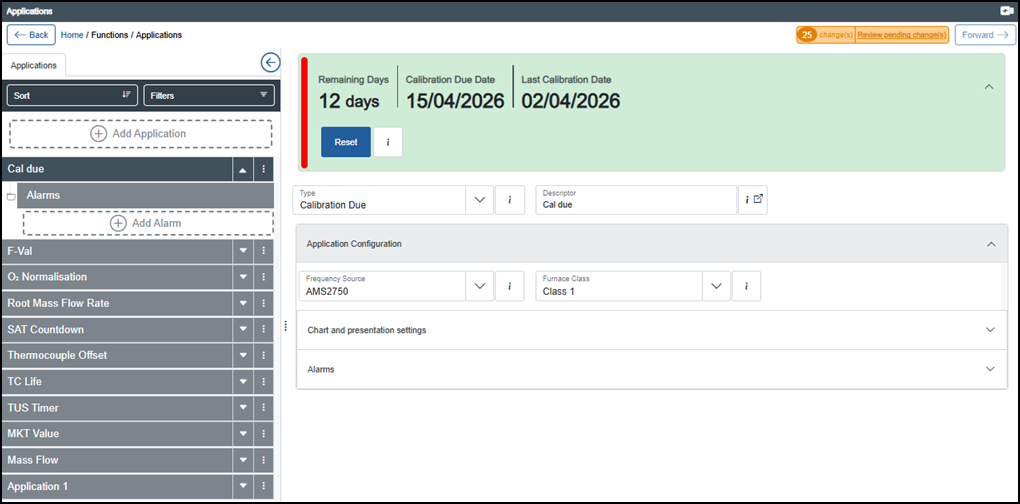

To access the Applications screen, from the EPM Data User Interface, select Options
- Functions - Applications:
The Applications screen displays providing the following options:
