EPM Solution I/O Modules

The following I/O modules are currently available for use with the EPM Solution:

AI3 - 3 Channel Isolated Universal Analog Input Module, see AI3 Three Channel Isolated Universal Analog Input Module Technical Data Sheet for details.
AI2 - 2 Channel Isolated Analog Input Module, see AI2 Two Channel Isolated Analog Input Module Technical Data Sheet for details.
DI4 - 4 Channel Digital Input Module, see DI4 Four Channel Digital Input Module Technical Data Sheet for details.
RL2 - 2 Channel Relay Output Module, see RL2 Two Channel Relay Output Module Technical Data Sheet for details.
BMS - Blanking Module (Single Width), see BMS - Blanking Module Single Width Technical Data Sheet for details.

Environment

IP degree of protection

IP20

Product certification

CULus

RCM

Standards

EN/IEC 61326-1

EN 61010-2-201

UL 61010-2-201

Directives

2014/30/EU - Electromagnetic compatibility

2014/35/EU - Low voltage

2011/65/EU, 2015/863/EU RoHS

Operating temperature

0 to 55 °C (32 to 131 °F)

Storage temperature

-5 to 60 °C (23 to 140 °F)

Relative humidity

5 % to 95 % without condensation

Operating altitude

0 to 2000 m (0 to 6561 ft)

Pollution degree

Vibration

2 g

Shock

15 g for 11 ms

Status LEDs for module and individual channels. These indicate if the module is operational and displays channel status.

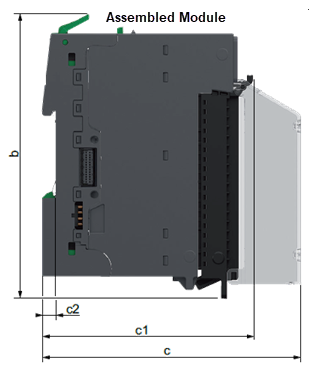

Dimensions	mm	inches
Module width	15	0.59
b	116.6	4.59
c	107.5	4.23
c1	88.2	3.47
c2	5.6	0.22

Weight	Maximum Grams (g)	Maximum Ounces (oz)
Module weight, including terminal block and cover	100	3.53

Dimensions

Dimension	Size
a	15 mm (0.59")
b	100 mm (3.94")
c	66 mm (2.60")
c plus Terminal Block	101.9 mm (3.98")

DANGER
HAZARD OF ELECTRICAL SHOCK, EXPLOSION OR ARC FLASH Do not exceed the device’s ratings. Ensure all cables and wiring harness are secured using a relevant strain relief mechanism. Failure to follow these instructions will result in death or serious injury

DANGER

HAZARD OF ELECTRICAL SHOCK, EXPLOSION OR ARC FLASH

Do not exceed the device’s ratings.
Ensure all cables and wiring harness are secured using a relevant strain relief mechanism.

Failure to follow these instructions will result in death or serious injury

WARNING
UNINTENDED EQUIPMENT OPERATION Ensure wires are routed to minimize the pick-up of Electromagnetic interference (EMI) keeping cable lengths to a minimum. Only use copper cables (except for the thermocouple wiring). Failure to follow these instructions can result in death, serious injury, or equipment damage

WARNING

UNINTENDED EQUIPMENT OPERATION

Ensure wires are routed to minimize the pick-up of Electromagnetic interference (EMI) keeping cable lengths to a minimum.
Only use copper cables (except for the thermocouple wiring).

Failure to follow these instructions can result in death, serious injury, or equipment damage

Tip - Where signal and power wiring cannot be separated, signal wiring should be shielded.

Terminal Wiring	Cross Section
1 solid conductor	0.2 to 2.5 mm² (American Wire Gauge (AWG) 24 - AWG 14)
2 solid conductors	0.2 to 1.5 mm² (AWG 24 - AWG 16) - both conductors must be the same cross section
1 stranded conductor without ferrule	0.2 to 2.5 mm² (AWG 24 - AWG 14)
1 stranded conductor with single ferrule	0.2 to 1.5 mm² (AWG 24 - AWG 16)
2 stranded conductors with twin ferrule	0.2 to 0.75 mm² (AWG 24 - AWG 20)

Note - Minimum individual conductor size in stranded connectors when no ferrule is used is a cross section of 0.05 mm² (AWG 30).

Terminal block captive screws are not supplied tightened and must be tightened to 0.5 to 0.6 Nm (0.30 lb-ft) using a flat tipped screwdriver with a diameter of 3.5 mm (0.14"). Stripping length for all cable types is 10 mm (0.39").

Applicable to AI3 Module:

Thermocouple Data

Temperature scale

ITS-90

Cold junction Compensation types

Automatic (Internal CJC measurement), Fixed (user entered value) , None, Remote (Software configured)

Upscale/downscale drive

User defined Value, Range High, Range Low

Thermocouple Types

Range °C (°F)

Standard

Max Linearization error °C (°F)

0 to 1820 (32 to 3308)

IEC 584.1

0 to 400 (32 to 752) = 1.7 (3.06)

400 to 1820 (752 to 3308) = 0.03 (0.054)

0 to 2300 (32 to 4172)

Hoskins

0.12 (0.22)

0 to 2495 (32 to 4523)

Hoskins

0.08 (0.14)

-270 to 1000 (-454 to 1832)

IEC 584.1

0.03 (0.05)

0 to 2315 (32 to 4199)

Hoskins

0.07 (0.13)

-210 to 1200 ( -346 to 2192)

IEC 584.1

0.02 (0.04)

-270 to 1372 (-454 to 2501.6)

IEC 584.1

0.04 (0.07)

-200 to 900 (-328 to 1652)

DIN43710:1985 (To IPTS68)

0.02 (0.04)

-270 to 1300 (-454 to 2372)

IEC 584.1

0.04 (0.07)

-50 to 1768 (-58 to 3214.4)

IEC 584.1

0.04 (0.07)

-50 to 1768 (-58 to 3214.4)

IEC 584.1

0.04 (0.07)

-270 to 400 (-454 to 752)

IEC 584.1

0.02 (0.04)

-200 to 600 (-328 to 1112)

DIN43710:1985

0.08 (0.14)

NiMo/NiCo

-50 to +1410 (-58 to 2570)

ASTM E1751-95

0.06 (0.11)

Ni/NiMo

0 to 1406 (32 to 2562.8)

Ipsen

0.14 (0.25)

Platinel

0 to 1370 (32 to 2498)

Engelhard

0.02 (0.04)

Pt20%Rh/ Pt40%Rh

0 to 1888 (32 to 3430.4)

ASTM E1751-95

0.07 (0.13)

0 to 1990 (32 to 3614)

Eurotherm

0.016 (0.)

Applicable to AI3 Module

Resistance Inputs

Temperature scale

ITS-90

Influence of lead resistance

Matched - Negligible

Mismatched - 1 Ω/Ω

Measurement source current

250 µA

Resistance Temperature Detector (RTD) Type

Range °C (°F)

Standard

Maximum Linearization Error °C (°F)

Cu10

-20 to 250 (-4 to 482)

General Electric Co.

0.02 (0.036)

Cu53

-70 to 200 (-94 to 392)

RC21-4-1966

0.01 (0.018)

JPt100

-220 to 630 (-364 to 1166)

JIS C1604:1989

0.01 (0.018)

Ni100

-60 to 250 (-76 to 482)

DIN43760:1987

0.01 (0.018)

Ni120

-50 to 170 (-58 to 338)

DIN43760:1987

0.01 (0.018)

Pt100

-200 to 850 (-328 to 1562)

IEC 751

0.01 (0.018)

Pt100a

-200 to 600 (-328 to 1112)

Eurotherm Recorders SA

0.09 (0.162)

Pt1000

-200 to 600 (-328 to 1112)

IEC 751

0.01 (0.018)

See Ordering an EPM Solution and/or EPM Spares for details.
